CEM-1 Copper Clad Laminate for PCB Manufacturing

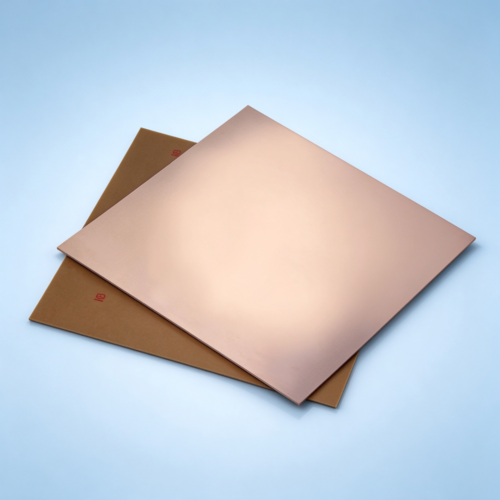

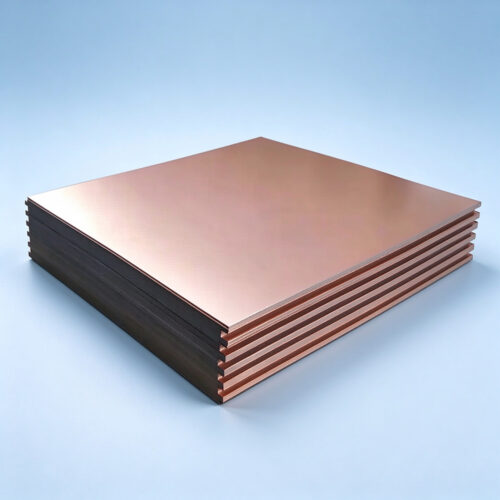

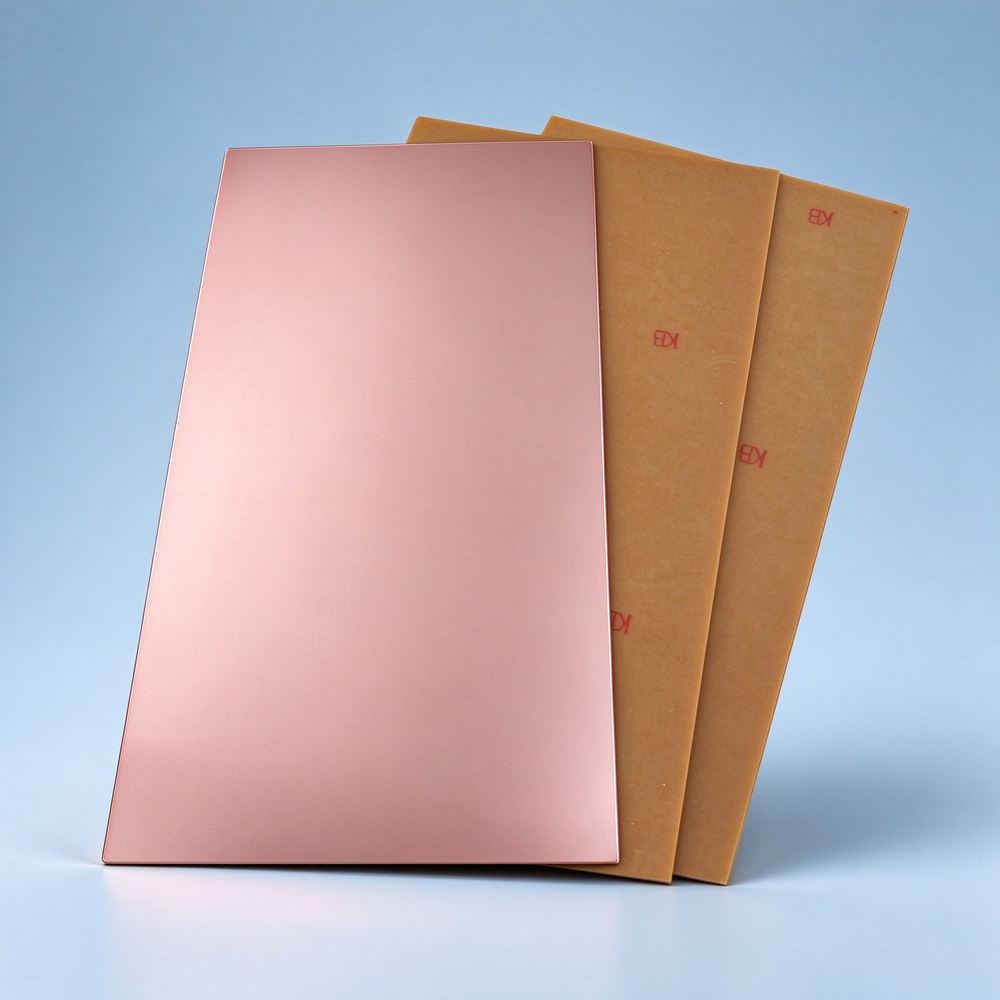

CEM-1 Copper Clad Laminate is a composite epoxy copper clad laminate designed for single-sided printed circuit board manufacturing. It combines a paper-based core with glass fabric reinforcement and epoxy resin to provide a balanced combination of electrical insulation, mechanical strength, dimensional stability, and cost-effective performance.

CEM-1 CCL is widely used as PCB material for general-purpose electronic applications where reliable electrical insulation, stable mechanical performance, and economical manufacturing are important. It is suitable for single-sided PCBs used in consumer electronics, electrical equipment, LED products, control panels, power supplies, and other electronic devices.

Longxing provides CEM-1 copper clad laminate with different board thicknesses, copper foil thicknesses, panel sizes, and technical specifications to meet the requirements of PCB manufacturers and electronic component suppliers.

What Is CEM-1 Copper Clad Laminate?

CEM-1 is a composite epoxy material used in the production of copper clad laminates for printed circuit boards. The material structure combines a paper-based substrate with glass fabric reinforcement and an epoxy resin system.

The copper foil is bonded to the insulating substrate to form a copper clad laminate that can be processed into printed circuit boards through conventional PCB manufacturing processes.

Compared with standard paper-based PCB materials, the composite structure of CEM-1 provides improved mechanical and electrical performance while maintaining a competitive material cost. This makes CEM-1 CCL a practical choice for a wide range of single-sided PCB applications.

Key Features of CEM-1 CCL

Composite Paper and Glass Fabric Structure

CEM-1 uses a composite substrate structure combining paper material and glass fabric reinforcement. This structure helps provide a suitable balance between mechanical strength, dimensional stability, and manufacturing cost.

Epoxy Resin System

The epoxy resin system provides electrical insulation and bonding performance within the laminate structure. It also supports reliable processing during PCB manufacturing.

Suitable for Single-Sided PCBs

CEM-1 copper clad laminate is commonly used for single-sided PCB manufacturing and general-purpose circuit board applications.

Cost-Effective PCB Material

CEM-1 provides a practical balance between material performance and cost, making it suitable for applications where economical PCB production is an important consideration.

Stable Electrical Insulation

The insulating substrate is designed to provide reliable electrical separation between conductive circuit paths when processed into a printed circuit board.

Customizable Specifications

CEM-1 CCL can be supplied in different board thicknesses, copper foil thicknesses, panel dimensions, and other specifications according to the requirements of PCB manufacturers.

CEM-1 PCB Material Applications

CEM-1 copper clad laminate is suitable for a variety of general-purpose electronic and electrical applications.

Typical applications include:

• Single-sided printed circuit boards
• Consumer electronic products
• Electrical equipment
• LED lighting products
• Control panels
• Power supply equipment
• Electronic control systems
• General-purpose electronic devices
• Industrial electronic equipment
• Cost-sensitive PCB applications

The final selection of CEM-1 PCB material should be based on the electrical, mechanical, thermal, dimensional, and manufacturing requirements of the finished PCB.

Why Choose CEM-1 Copper Clad Laminate?

CEM-1 CCL is a practical solution for PCB manufacturers looking for a balance between performance and production cost.

Its composite substrate structure provides suitable mechanical and electrical properties for many single-sided PCB applications, while its paper-based construction helps maintain competitive material costs.

For PCB manufacturers, the choice of copper clad laminate can directly affect board processing, electrical insulation, mechanical stability, and overall production efficiency. CEM-1 provides a reliable material option for applications that do not require the higher performance characteristics of more advanced PCB laminate systems.

CEM-1 CCL for PCB Manufacturing

CEM-1 copper clad laminate can be processed into printed circuit boards using appropriate PCB manufacturing processes.

Depending on the final PCB design and manufacturing requirements, the laminate may undergo processes such as:

1. Copper circuit pattern formation
2. Drilling and mechanical processing
3. Etching
4. Cutting and profiling
5. Electrical testing
6. Final PCB inspection

PCB manufacturers should select the appropriate CEM-1 specification based on the required board thickness, copper thickness, panel dimensions, circuit design, and manufacturing process.

CEM-1 vs. Other PCB Materials

Different PCB laminate materials are designed for different applications.

CEM-1 is particularly suitable for general-purpose and cost-sensitive single-sided PCB applications. It provides a useful alternative to conventional paper-based materials while offering a composite structure with glass fabric reinforcement.

For applications requiring higher thermal performance, higher mechanical performance, multilayer construction, or other specialized properties, a different copper clad laminate may be more appropriate.

Longxing can help customers select a suitable CCL material according to PCB structure, application requirements, board thickness, copper foil thickness, and production conditions.

Quality and Customization

Longxing focuses on supplying copper clad laminate materials for PCB manufacturing and supports different product specifications according to customer requirements.

Depending on the project, customers can discuss requirements such as:

• Board thickness
• Copper foil thickness
• Panel dimensions
• Surface requirements
• Packaging requirements
• Production quantity
• Application requirements
• Custom specifications

Technical specifications should be confirmed with Longxing before placing an order to ensure that the selected CEM-1 material matches the customer’s PCB manufacturing process.
